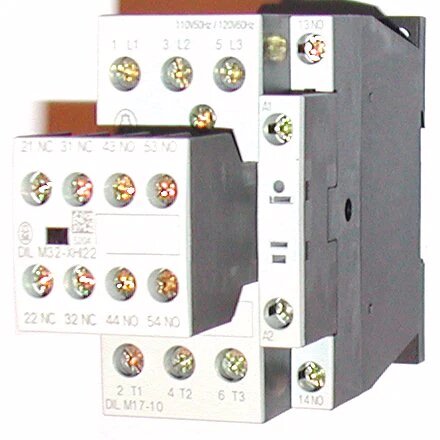

The Klockner Moeller DILM17-32 (415V50Hz, 480V60Hz)
is a 3-phase IEC rated contactor
used for the control of electric
motors. It is rated 5 HP at 230V
and 10 HP at 460V. It comes with
3NO and 2NC auxiliary contact.
Conforms to IEC 60947
Product Specifications
| Product Attribute | Attribute Value |
| Amp ratings : AC1 | 40 |
| Three phase HP ratings : 230V | 5 |
| Three phase HP ratings : 460V | 10 |
| Auxiliary contacts : NO | 3 |
| Auxiliary contacts : NC | 2 |
| Coil Voltage / AC Voltage | 415V50HZ, 480V60HZ |
| Catalog No. | DILM17-32(415V50HZ, 48060HZ) |
