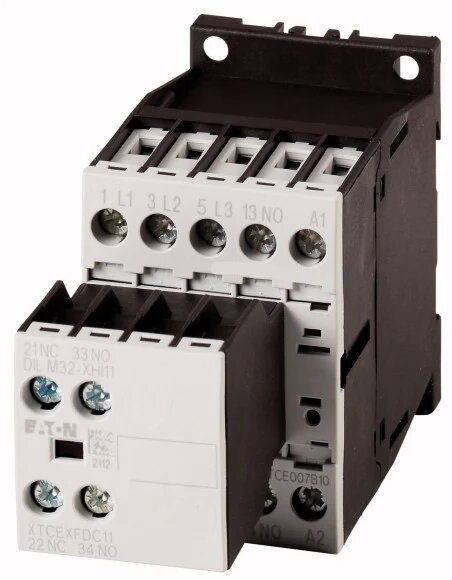

The Klockner Moeller DILM7-21 (24V50/60Hz)
is a 3-phase IEC rated contactor
used for the control of electric
motors. It is rated 2 HP at 230V
and 3 HP at 460V. It comes with
2NC and 1NO auxiliary contact.
Conforms to IEC 60947
Product Specifications
| Product Attribute | Attribute Value |
| Three phase HP ratings : 230V | 2 |
| Three phase HP ratings : 460V | 3 |
| Auxiliary contacts : NO | 2 |
| Auxiliary contacts : NC | 1 |
| Coil Voltage / DC Voltage | 24VDC |
| Catalog No. | DILM7-21(24VDC) |
