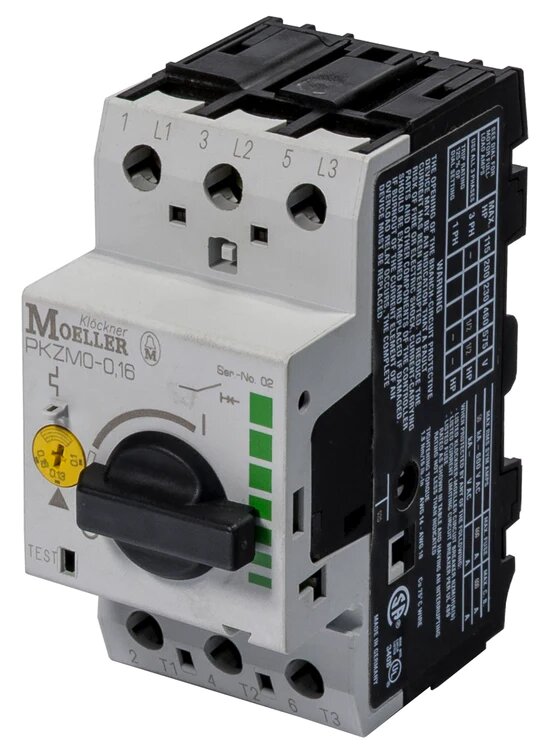

The Klockner Moeller PKZM0-1,6 is a
3 phase thermal-magnetic motor protective device
incorporating adjustable bimetal trips for motor
overload protections and magnetic trips to de-energize
the motor circuit in case of a short circuit.
Product Specifications
| Product Attribute | Attribute Value |
| Rated Un-interrupted Current | 1.6 |
| Setting:Overload Releases | 1 - 1.6 |
| Setting:Short Circuit Releases | 22 |
| Maximum HP Three phase:200V | - |
| Maximum HP Three phase:240V | - |
| Maximum HP Three phase:480V | 0.75 |
| Maximum HP Three phase:600V | 0.75 |
| Catalog No. | PKZM0-1,6 |
